- Place of Origin: JIANGSU
- Brand Name: TURUI

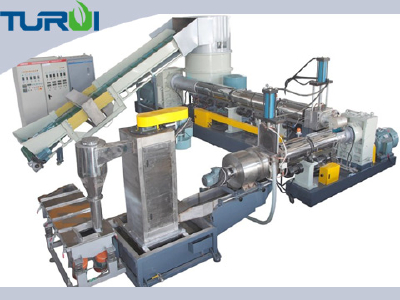

- Model Number: Granulator with compactor
Features:
1.The compactor extremely reduced power consumption cost per kilogram
2.It increased high throughput,less floor space occupation and laborhood.
3.Films,bags,loose materials can be directly processed, no need of the upstream pre-shredding.
4.Before apply agglomerator, one worker is needed specially.
Now production flow could be continuously.
Working Principle of Compactor system:
When the waste plastic is supplied into the chamber of such machine,
it will be cut into smaller chips due to the crushing function of rotating knives and
fixed knives.During the crushing processing,materials that soaked up lots of heat from
frictional movement.The wall of container will become semi-plasticizing state.
The particles will stick with each other due to function of plasticize.
Through this step,loose films become compressed,and then feeded into screws,
it extremely increased production capacity.
Model | ML130-100 | ML160-130 | ML150-140 | ML180-160 | ML200-180 | ||||
Output | 100-1000 | ||||||||
Diameter of Screw | 130-100 | 160-130 | 150-140 | 180-160 | 200-180 | ||||
Heaters | Cast aluminum, Ceramic ,or Spiral electric magnetic heater | ||||||||
Pelletizing method | Water-ring rubs surface, pulls strap ,underwater |
Turui Machinery specially work for independent research and development of plastic machinery.
Such As:
1.Plastic Products Extrusion Line
Plastic Pipes extrusion line (Pe,pp,ppr,pvc,cpvc,upvc,abs,pa,eva pipes,soft pvc, 3 layers PP pipes)
Corrugated pipes extrusion line(single wall,double wall)
Plastic Profiles extrusion line (panels,ceiling,furniture board,wpc floor,windows)
Foamed PVC board
WPC foam board
Marble border profile,Marble Board
2.Recycling Line
washing recycling line,plastic recycle granulation line, plastic pelletizer,including,water strand pelletizer,water ring cut pelletizer,rub face hot cut pelletizer,air cooling strand pelletizer,multi stage air cooling pelletizer etc. plastic crushers,plastic shredders,plastic grinders,plastic pulverizers,,,
3.Injection Machine
4. Blow Moulding Machine for PE,PP bottles
Turui Machinery is professional in offering entire solutions.
Turuiengineers will design machine according to your raw materials,
give advice which plastic machine is good for you. According to different raw materials characters,there are different
types pelletizer for choice.
Turui is an innovation high tech company,always keep focus on plastic solution.
